Liberty Pumps®

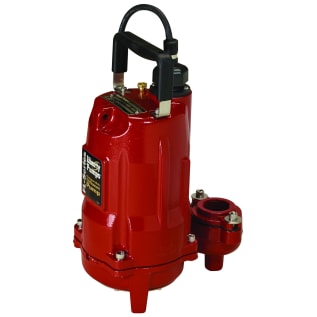

LIBERTY FL51M 1/2 HP SUMP PUMP

902654 MFG #: FL51M
$981.00 / ea
LIBERTY FL51M 1/2 HP SUMP PUMP
  • Amperage Rating: 12 A Full Load/48.6 A Locked Rotor
  • Automatic/Non Automatic: Non-Automatic
  • Bearing Type: Ball/Race
  • Cord Type: SJTW 10 ft
  • Dimensions: 11.2 in W x 7 in D x 16.4 in H
  • Enclosure Type: NEMA 4X
  • Frequency Rating: 60
  • Horsepower: 1/2
  • Impeller Type: Cast Iron Multi-Vane Semi-Open
  • Material: Cast Iron
  • Maximum Flow Rate: 92
  • Maximum Head: 55
  • Motor Speed: 3450
  • Outlet Size: 1-1/2 in FNPT
  • Rated Head: 15
  • Series: FL50
  • Temperature Rating: 248 deg F Thermal Overload
  • Type: Mid-Range Head
  • Voltage Rating: 115
  • Phase: 1

Liberty Pumps® Submersible Effluent Pump, Mid-Range Head, Series: FL50, 76 gpm Maximum, 15 ft, Non-Automatic, 1-1/2 in and 2 in FNPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 VAC, 12 FLA/48.6 A Locked Rotor, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, SJTW 10 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 248 deg F Thermal Overload, NEMA 4X Enclosure, Ball/Race Bearing, Heavy Cast Iron, 11.2 in W x 7 in D x 16.4 in H Dimensions,

QTY
Add to List
  • Features
  • Videos
  • 3/4 in solid handling
  • Semi-open impellers permit passage of solids without clogging
  • Stainless steel fasteners
  • 416 stainless steel rotor shaft
  • Permanently lubricated upper and lower ball bearings
  • Oil filled, hermetically sealed motors with thermal overload protection
  • Unitized carbon and ceramic shaft seal
  • Dual-sized discharge flange 1-1/2 or 2 in
  • Class B stator winding
  • Cast iron impeller and volute
  • Buna-N O-ring
  • Powder coating paint
  • 140 deg F fluid temperature
  • Manual operation
  • Standard/Approvals: cCSAus Certified|SSPMA Certified|PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
  • WARRANTY: 3 Years Limited
