Zoeller®

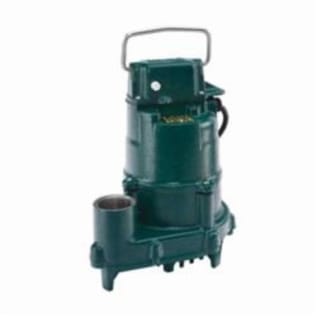

Zoeller® 152-0002 High Head Dose-Mate 150 Single Seal Effluent Pump, 77 gpm Max Flow, Non-Automatic, 38 ft Max Head, 115 VAC, 1 ph

896386 MFG #: 152-0002
$498.00 / ea
Zoeller® 152-0002 High Head Dose-Mate 150 Single Seal Effluent Pump, 77 gpm Max Flow, Non-Automatic, 38 ft Max Head, 115 VAC, 1 ph
  • Amperage Rating: 8.5
  • Automatic/Non Automatic: Non-Automatic
  • Bearing Type: Upper Sleeve/Lower Ball
  • Dimensions: 12-1/8 in H
  • Frequency Rating: 60
  • Horsepower: 4/10
  • Impeller Type: Engineered Thermoplastic Non-Clogging Vortex
  • Material: Cast Iron
  • Maximum Flow Rate: 77
  • Maximum Head: 38
  • Motor Speed: 3450
  • Outlet Size: 1-1/2 in NPT
  • Series: High Head Dose-Mate 150
  • Temperature Rating: 130
  • Type: Single Seal
  • Voltage Rating: 115
  • Phase: 1

Zoeller® Effluent Pump, Single Seal, Series: High Head Dose-Mate 150, 77 gpm Maximum, Automatic/Non Automatic: Non-Automatic, 1-1/2 in NPT Outlet, 38 ft Maximum Head, 4/10 hp, 115 VAC, 8.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, Engineered Thermoplastic Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 12-1/8 in H Dimensions

This is our fastest growing line of effluent pumps. The 150 series is truly a workhorse designed for reliability under extreme conditions in an effluent environment. 150 series pump curves cover a wide range of applications. They are well suited to applications with low pressure pipe (LPP) and enhanced flow STEP systems. Zoeller® cool run design and corrosion resistant, epoxy powder coated finish, in addition to the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.

QTY
Add to List
  • Features
  • Corrosion resistant, powder coated epoxy
  • Stainless steel lifting handle
  • Assembled with stainless steel bolts
  • 4/10 hp, passes 3/4 in spherical solids
  • Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Carbon/ceramic seals
  • Upper sleeve bearing and lower ball bearing running in bath of oil
  • 20 ft, UL listed power cord with molded, 3-wire plug
  • 1-1/2 in NPT vertical discharge
  • For septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
  • Standard/Approvals: cCSAus Certified|SSPMA Certified|UL Listed
  • INCLUDES: 1-1/2 x 2 in PVC Adapter
