Tomahawk

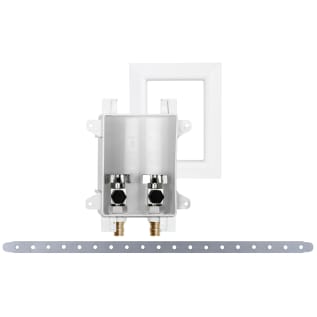

Sioux Chief OxBox™ 696RG2001WF Fire-Rated Lavatory Outlet Box, 1/2 in F1960 PEX Grip™ Inlet x 3/8 in Compression Outlet, ABS

1231765 MFG #: 696RG2001WF
$92.60 / ea
Sioux Chief OxBox™ 696RG2001WF Fire-Rated Lavatory Outlet Box, 1/2 in F1960 PEX Grip™ Inlet x 3/8 in Compression Outlet, ABS
  • Dimensions: 7-1/4 in H x 5-3/4 in W
  • Material: ABS
  • Type: Fire-Rated
  • Series: 696
  • Inlet Size: 1/2
  • Outlet Size: 3/8
  • Pressure Rating: 250
  • Inlet Type: F1960 PEX Grip™
  • Outlet Type: Compression
  • Temperature Rating: 250

Tomahawk OxBox™ Lavatory Outlet Box, Fire-Rated, Series: 696, 1/2 in Inlet, 3/8 in Outlet, F1960 PEX Grip™ Inlet, Compression Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 5-3/4 in W

Sioux Chief 696R series Ox Box fire-rated lavatory outlet box shall be used where necessary in plumbing supply systems. Box shall allow for mounting with supply lines from top or bottom, mounted on-stud. Unit shall be available with plain valves or valves with water hammer arresters. Arrester shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top track of box for additional support. Outlet connection shall be generally 3/8 in .

QTY
Add to List
  • Features
  • Videos
  • Patent No 7,360,553 and no 7,735,511
  • ABS boxes mount securely to stud or over studs
  • Eliminates cleaning stub outs and installing supply stops at finish
  • Debris covers included
  • High quality quarter-turn lead free ball valves
  • Standard/Approvals: ASME A112.18.1, IPC Certified, NSF-61, IAPMO Listed, UPC Certified
