Oatey®

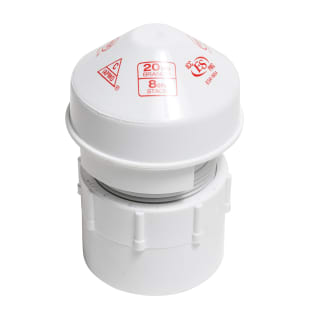

Oatey® Sure-Vent® 39228 Air Admittance Valve With SCH 40 PVC Adapter, 1-1/2 in Nominal, NPT End Style, 6 DFU Flow Rate, PVC Body, Domestic

1282814 MFG #: 39228
$42.83 / ea
Oatey® Sure-Vent® 39228 Air Admittance Valve With SCH 40 PVC Adapter, 1-1/2 in Nominal, NPT End Style, 6 DFU Flow Rate, PVC Body, Domestic
  • Body Material: PVC
  • Dimensions: 7-3/4 in H
  • Domestic/Import: Domestic
  • End Style: NPT
  • Flow Rate: 6
  • Inlet to Outlet Length: 4
  • Nominal Size: 1-1/2
  • Temperature Rating: -40 to 150

Oatey® Sure-Vent® Air Admittance Valve, 1-1/2 in Nominal, NPT End Style, -40 to 150 deg F, 6 DFU Flow Rate, 4 in Inlet to Outlet Length, PVC Body, 7-3/4 in H, Domestic

Oatey® Sure-Vent® 6 DFU Capacity Air Admittance Valve is a one-way valve designed to allow air to enter the plumbing drainage system when negative pressures develop in the piping system.

QTY
Add to List
  • Features
  • Videos
  • For use as a secondary vent
  • One size approved to handle upto 2 in vent pipe
  • Vents upto 20 DFU branch or 8 DFU stack
  • Sweet Spot™ technology opens at 0.01 psi and seals at 0 psi and above
  • Screening on air inlets to guard the seal
  • Protective sleeve provides grip for installation and keeps valve free from debris
  • 100% functionally tested at 1/4 in H2O and 30 in H2O ensuring trouble free performance
  • Opens/closes as needed by building's plumbing system
  • Closes through gravity
  • Standard/Approvals: ASTM D2661/D2665/F409|ASSE 1050/1051|IAPMO Listed|International Plumbing Code (IPC) Approved|International Residential Code (IRC) Approved|NES NER-670|NSF 14|Uniform Plumbing Code (UPC) Section 301.2
