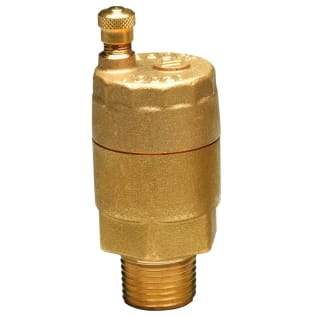

WATTS® 0590723 FV-4M1 Automatic Air Vent Valve, 3/4 in, 1.45 to 150 psi, Brass Body
- Body Material: Brass
- Dimensions: 3-3/8 in H
- Domestic/Import: Import
- Nominal Size: 3/4
- Pressure Rating: 1.45 to 150
- Series: FV Series
- Softgoods Material: Silicone Rubber Seal
- Temperature Rating: 33 to 240
- Type: Automatic
WATTS® Air Vent Valve, Automatic, Series: FV-4M1, 3/4 in Nominal, 1.45 to 150 psi, 33 to 240 deg F, Brass Body, Silicone Rubber Seal, 3-3/8 in H
Series FV-4 Automatic Vent Valves are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with male NPT connection, brass cover, air vent with silicone rubber seal, polyethylene float with valve plug, and automatic vent. Series FV-4M1 has a high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can also be installed to permit the separation and dispersal of air while fluid is circulating in the system. Can be disassembled for inspection and cleaning.
- Features
- Body and cover are brass construction
- Air vent with silicone rubber seal
- Impurities do not usually affect function as maximum float line of water is always lower than the valve seal
- Float is high temperature resistant polyethylene
- Suitable for use with glycol systems
- Can be disassembled for inspection and cleaning
- Standard/Approvals: US Green Building Council
- WARRANTY: Limited
