Zurn®

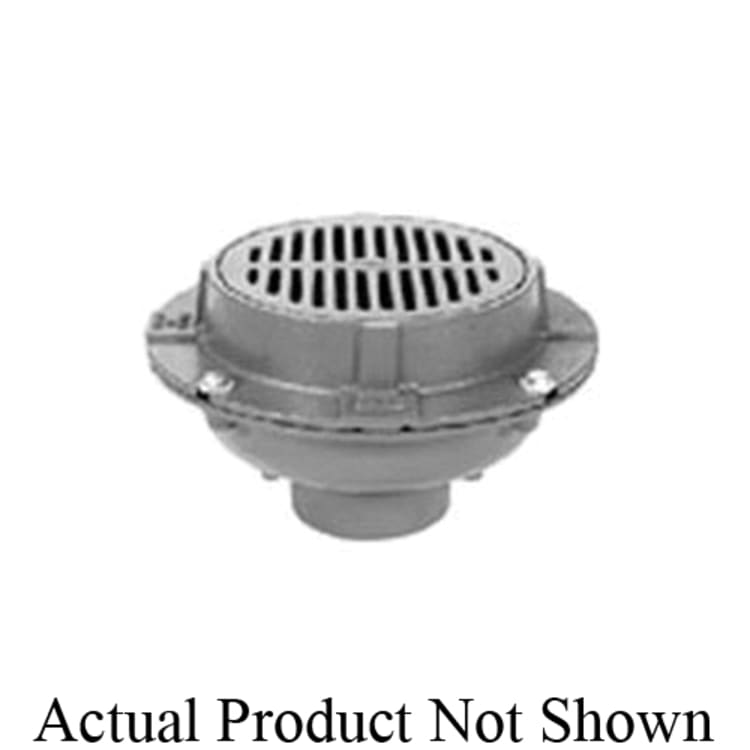

Zurn® Z550-3NH-Y Medium Duty Area Drain, 3 in Outlet, No-Hub Outlet Connection, Cast Iron Drain

1045130 MFG #: Z550-3NH-Y
$332.00 / ea
Zurn® Z550-3NH-Y Medium Duty Area Drain, 3 in Outlet, No-Hub Outlet Connection, Cast Iron Drain
  • Connection Type: No-Hub Outlet
  • Dimensions: 12 in Dia x 7-1/4 in H
  • Drain Material: Cast Iron
  • Finish: Dura Coated
  • Series: Z550
  • Type: Medium Duty
  • Outlet Size: 3

Zurn® Area Drain, Medium Duty, Series: Z550, 3 in Outlet, No-Hub Outlet, Cast Iron Drain, Dura Coated, 12 in Dia x 7-1/4 in H

The Zurn® Z550 9 in medium-duty drain comes with a Dura-Coated cast iron body with bottom outlet, seepage pan and combination membrane flashing clamp and frame for medium-duty, cast iron, heel-proof slotted grate.

QTY
Add to List
  • Features
  • Patented AR spool for replacements of Zurn® 475V Ductile Iron n-Pattern Series, as well as unique customer-modified installations, provide additional drop-in replacement options for every installation setting
  • 18 sq-in grate open area
  • Standard/Approvals: ASME A112.6.3|ASTM A48 Class 25
  • INCLUDES: Bottom Outlet, Seepage Pan, Combination Membrane Flashing Clamp, Frame, Sediment Bucket, 9 in Dia Dura-Coated Cast Iron Top and Heel-Proof Slotted Grate
  • WARRANTY: 1 Year Limited
