MIFAB®

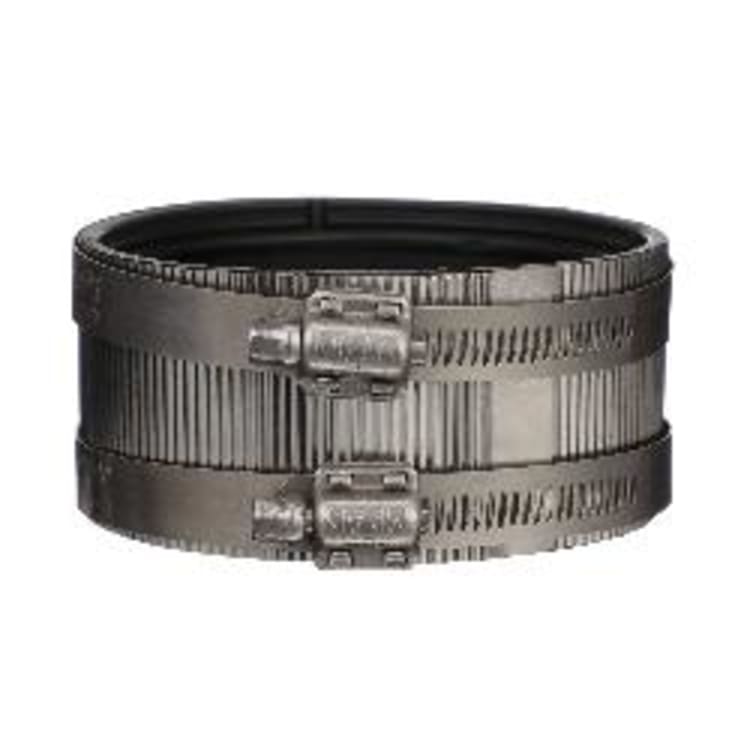

MIFAB® MI-QHUB-4 Regular Duty Shielded Quick Hub Coupling, 4 in Nominal, No Hub End Style, 301 Stainless Steel, Import

1498834 MFG #: MI-QHUB-4
$44.25 / ea
MIFAB® MI-QHUB-4 Regular Duty Shielded Quick Hub Coupling, 4 in Nominal, No Hub End Style, 301 Stainless Steel, Import
  • Dimensions: 2-1/8 in H
  • Domestic/Import: Import
  • End Style: No-Hub
  • Fitting/Connector Type: Coupling
  • Hex Size: 5/16
  • Material: 301 Stainless Steel
  • Nominal Size: 4
  • Pressure Rating: 20
  • Series: MI-QHUB
  • Type: Regular Duty Shielded

MIFAB® Quick Hub Coupling, Regular Duty Shielded, Series: MI-QHUB, Fitting/Connector Type: Coupling, 4 in Nominal, No Hub, 5/16 in Hex, 20 psi, 301 Stainless Steel, 2-1/8 in H, Import

MIFAB® Series MI-QHUB (specify size) no hub couplings are manufactured with Quick Hub gaskets made with neoprene that meets the requirements of ASTM C-564 housed inside a Type 301 stainless steel corrugated shield. Two (2 through 4 in size), four (6 through 10 in size) or six (12 in sizes) Type 301 stainless steel clamps tightened with 5/16 in Type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-QHUB Series Couplings are tested and certified to the ASTM-C1277-2009a, CISPI 310-2010, and CSA B602-2010 (File # 247608) Standards and are listed with IAPMO. Also tested and certified by Intertek Testing Services to CAN/ULC S102.2-07 "Smoke Test." Patented Pipe Clamp for joining all types of pipe.

QTY
Add to List
  • Features
  • Videos
  • 40% less labor
  • Less skilled labor helper required
  • Faster installation - complete job quicker to make deadlines
  • Quick install - no need to peel back gasket and shield
  • Gasket and shield do not come apart
  • Fast assembly - assembles over cast iron fitting with ease
  • Torque requirements - same 60 to 80 lb torque requirement as regular couplings
  • Field tested - test in high-rise commercial buildings, tested perform on min/max pipe diameters
  • Used to provide a positive and significant seal between no hub cast iron pipe and fittings
  • The patented sealing ribs within the quick hub gasket ensure that the gasket remains within the shield during shipping and handling and also a quick push on installation onto the pipe
  • There is no need to remove the gasket first and roll it over the pipe
  • With quick hub, you simply push the coupling onto the pipe
  • Standard/Approvals: ASTM C-564|ASTM-C1277-2009a|CISPI 310-2010|NSF/CSA B602-2010 File No. 247608|IAPMO Listed|CAN/ULC S102.2-07|NSF Approved|UPC Listed|Patent 10,253,885/10,100,956/10,557,578|PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • INCLUDES: Neoprene Rubber Gasket, AISI 301 Stainless Steel Shield, Type 305 AISI Stainless Steel Screws, Type 301 AISI Stainless Steel Eyelets and Type 301 AISI Stainless Steel Band
  • WARRANTY: 1 year
