A.Y. McDonald

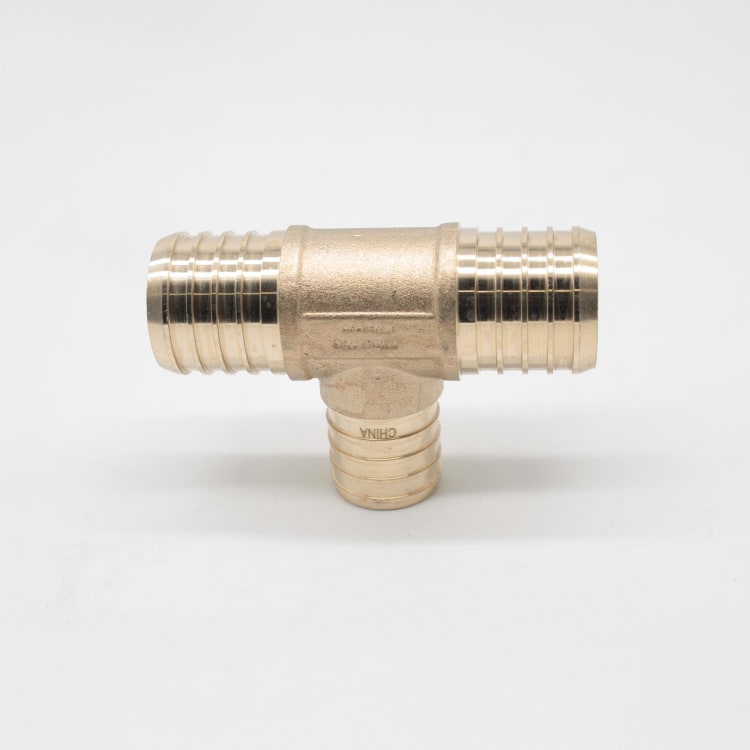

A.Y. McDonald 5423-054 72330 1 1/4X1 Reducing Tee, 1-1/4 x 1 in Nominal, PEX End Style, Brass, Import

1153957 MFG #: 5423-054
$21.42 / ea
A.Y. McDonald 5423-054 72330 1 1/4X1 Reducing Tee, 1-1/4 x 1 in Nominal, PEX End Style, Brass, Import
  • End Style: PEX
  • Fitting/Connector Type: Tee
  • Material: Brass
  • Method of Manufacture: Forged
  • Nominal Size: 1-1/4 x 1
  • Pressure Rating: 160
  • Temperature Rating: 73

A.Y. McDonald Reducing Tee, Tee Fitting/Connector, 1-1/4 x 1 in Nominal, PEX End Style, 160 psi Pressure, Forged Method of Manufacture, Brass, 73 deg F

QTY
Add to List
  • Features
  • Videos
  • 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 210 deg F
  • Vibration: excellent resistance
  • All CNC machined ends
  • The weighted average of the wetted surface of this No lead product contacted by consumable water contains less than 0.25% lead
  • ASTM F876 specification for crosslinked polyethylene (PEX) tubing
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
  • Standard/Approvals: ANSI B1.20.1|ANSI B16.18|ASTM F1807|ASTM F876/F877|NSF/ANSI 61-4/61-2012
  • WARRANTY: Limited
