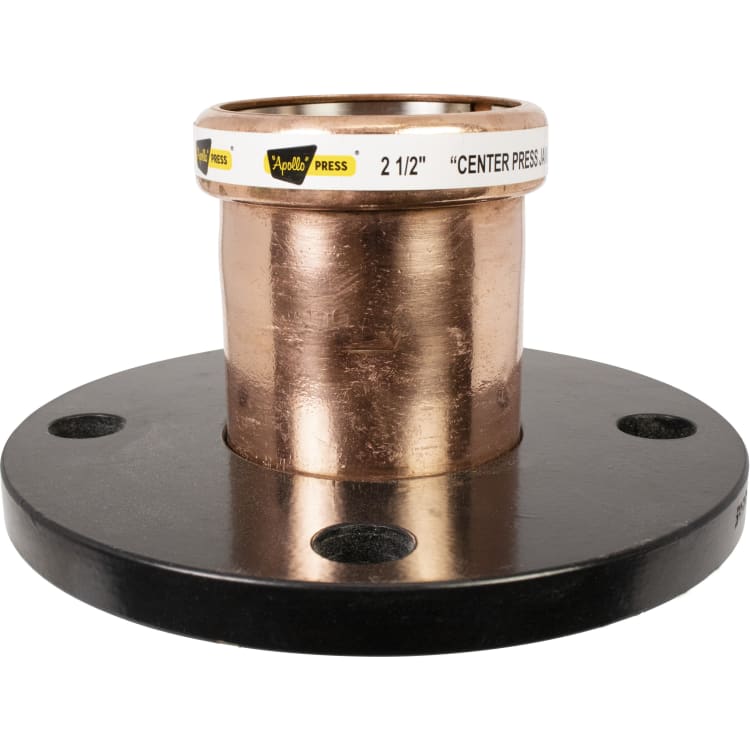

EPC ApolloPRESS® 10061763 8771 Large Diameter Companion Flange, 2-1/2 in, Copper, Press, 150 lb

1255119 MFG #: 10061763
$389.99 / ea
EPC ApolloPRESS® 10061763 8771 Large Diameter Companion Flange, 2-1/2 in, Copper, Press, 150 lb
  • Connection Type: Press
  • Dimensions: 3.62 in L x 7 in W x 7 in H
  • Material: Copper
  • Nominal Size: 2-1/2
  • Pressure Class: 150
  • Pressure Rating: 200
  • Series: 8771
  • Temperature Rating: 0 to 250
  • Type: Large Diameter

EPC ApolloPRESS® Companion Flange, Lead Free Large Diameter, Series: 8771, 2-1/2 in Nominal, Press, 200 psi, 150 lb, 0 to 250 deg F, Copper, 3.62 in L x 7 in W x 7 in H

The APOLLOXPRESS® 8771 large Dia press 150lb companion flange features a lead-free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM O-ring. The black powder coating provides separation of dissimilar metals preventing electrolysis. Our large Dia APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly made in the USA.

QTY
Add to List
  • Features
  • Black powder-coated steel flange base
  • Leak-before-press technology
  • Compatible with XL-C™ pressing tools
  • Approved for underground installation (per local installation code)
  • Use with hard/soft ASTM B88 K, L and M copper tube
  • EPDM O-ring, silicone lubrication, 304/306 stainless steel grab ring, nylon 66 spacer ring
  • Temperature range 0 to 250 deg F depending on application, hot water up to 250 deg F, chilled water down to 33 deg F
  • Standard/Approvals: ARRA Compliant|cUPC® Compliant|NSF/ANSI NSF 61/372|UNS C12200 Body|UPC Listed
