Taco®

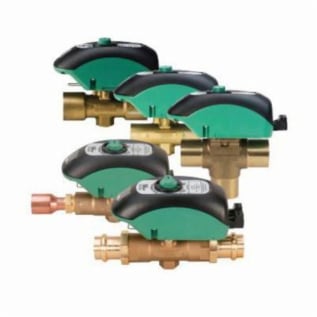

Taco® Z075C2-1 Zone Sentry® 2-Way Hydronic Zone Valve, 3/4 in, C, 300 psi, 10.3 Cv, 24 VAC

1089048 MFG #: Z075C2-1
$224.00 / ea
Taco® Z075C2-1 Zone Sentry® 2-Way Hydronic Zone Valve, 3/4 in, C, 300 psi, 10.3 Cv, 24 VAC
  • Amperage Rating: 0.48 A Charging/0.06 A Power On
  • Coefficient of Volume: 10.3
  • End Style: C
  • Material: Forged Brass
  • Nominal Size: 3/4
  • Pressure Rating: 300
  • Series: Zone Sentry®
  • Type: 2-Way
  • Voltage Rating: 24
  • Water Temperature: 20 to 220

Taco® Hydronic Zone Valve, 2-Way, Series: Zone Sentry®, 3/4 in Nominal Size, C, 300 psi, 10.3 Cv, 24 VAC, 0.48 A Charging/0.06 A Power On, 20 to 220 deg F Water Temperature, Forged Brass

Taco Zone Sentry® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

QTY
Add to List
  • Features
  • Ball, stem, press ring brass
  • Modified PTFE seat
  • EPDM o-ring
  • 125 psi shut-off pressure
  • 135 deg F ambient temp
  • 90 turns ball rotation speed
  • 60 Hz frequency
  • 11.4 W power consumption (charging)
  • 1.44 W power consumption (power on)
  • 0.5 A heat anticipator
  • 1 A at 24 VAC
  • High performance internally lubricated engineered polymer gears
