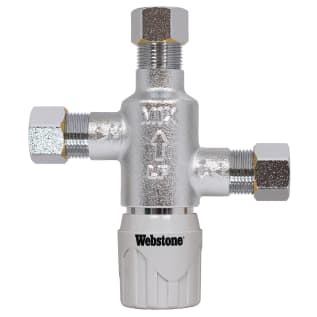

Webstone H-77201W 7720W Thermostatic Mixing Valve, 3/8 in Nominal, Compression End Style, 150 psi Pressure, Forged DZR Brass Body, Import
- Nominal Size: 3/8
- Dimensions: 3.29 in H
- Series: 7720W
- Finish: Polished Chrome
- Pressure Rating: 150
- Body Material: Forged DZR Brass
- Softgoods Material: EPDM
- Trim Material: Stainless Steel Spring
- Actuator Type: Temperature Locking
- Domestic/Import: Import
- End Style: Compression
- Temperature Rating: 95 to 120
Webstone, H-77201W, Thermostatic Mixing Valve, Series: 7720W, 3/8 in Nominal, Compression End Style, 150 psi Pressure, 95 to 120 deg F, Temperature Locking Actuator, Forged DZR Brass Body, Stainless Steel Spring Trim, EPDM Softgoods, Polished Chrome, 3.29 in H Dimensions, Import
Webstone offers a wide array of mixing valves and accessories for a host of applications and system requirements. This particular series of valves is suitable for point-of-use applications, specifically those where a more descrete asthetic is desired. Designed for use with water in residential or commercial residential plumbing, commericial plumbing systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
- Features
- Mixes hot and cold water to pre-set output temperature
- Chrome-Plated DZR Construction
- Models available to satisfy all state and federal low-lead laws
- Standard/Approvals: ASSE 1070|NSF/ANSI 61/372|ASSE 1070|cUPC Listed|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- INCLUDES: Mounting Bracket, Integral Check Valves and Cold Water By-Pass Fittings
