Caleffi

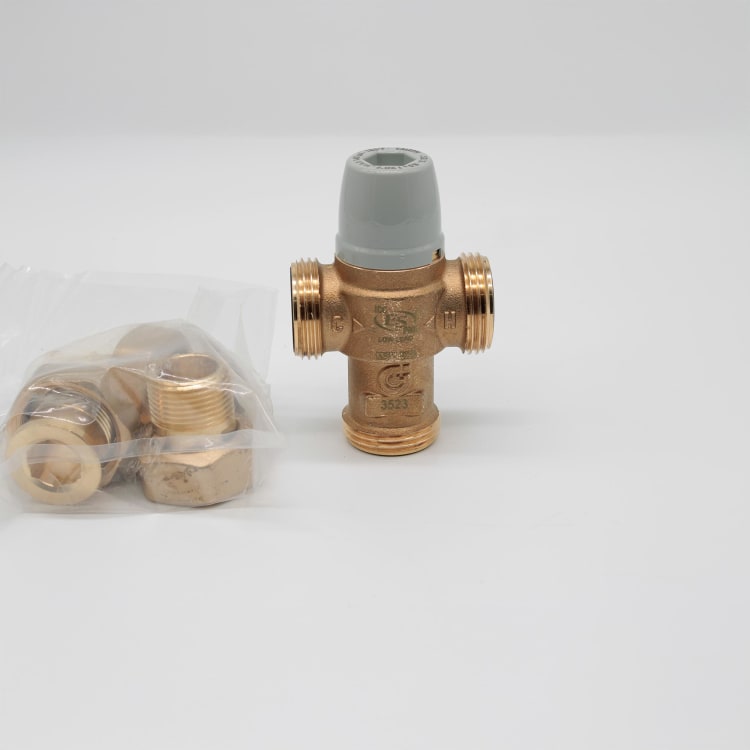

Caleffi 521352A 3-Way Scald Protection Point-of-Use Thermostatic Mixing Valve With Check Valve, 3/4 in, MNPT, 150 psi, 0.5 gpm, Brass Body

1087282 MFG #: 521352A
$143.00 / ea
Caleffi 521352A 3-Way Scald Protection Point-of-Use Thermostatic Mixing Valve With Check Valve, 3/4 in, MNPT, 150 psi, 0.5 gpm, Brass Body
  • Body Material: Brass
  • Dimensions: 4-15/16 in L x 5-11/16 in W
  • End Style: MNPT
  • Flow Rate: 0.5
  • Media: Water
  • Nominal Size: 3/4
  • Pressure Rating: 150
  • Series: 5213
  • Softgoods Material: EPDM Seal
  • Temperature Rating: 85 to 120
  • Type: 3-Way Scald Protection Point-of-Use

Caleffi Thermostatic Mixing Valve, 3-Way Scald Protection Point-of-Use, Series: 5213, 3/4 in Nominal, MNPT, 150 psi, 85 to 120 deg F, 0.5 gpm, Media: Water, Brass Body, EPDM Seal, 4-15/16 in L x 5-11/16 in W

Adjustable thermostatic and pressure balanced mixing valve for point-of-use where the user must be protected from the danger of scalding caused by hot water with locking set point. Complete with check valves on both hot and cold inlets.

QTY
Add to List
  • Features
  • Videos
  • Anti-scale materials prevent scaling on internal sliding parts, that reduces jamming caused by lime deposits, assuring reliable, constant temperature setpoint and long, trouble-free operating life
  • Complete with check valves on both hot and cold inlets
  • <0.25% lead content brass body
  • Standard/Approvals: ANSI/NSF 372-2011|ASSE 1070|ASME A112.1070|CSA B125.70-2015|CSA B125.3-2012|FM 21654|IPC/IRC/UPC and NPC Compliance|ISO 9001|Low Lead Certified by ICC-ES|File PMG-13|NSF/ANSI 372 - 2016 Drinking Water System Components - Lead Content|Reduction of Lead in
  • WARRANTY: 2 Years
