Gruvlok®

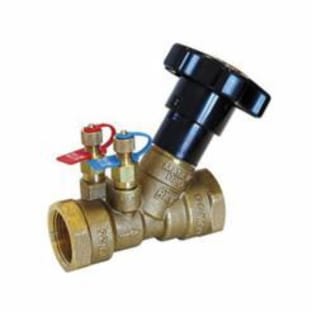

Gruvlok® 0763100104 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 2 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import

1383990 MFG #: 0763100104
$597.79 / ea
Gruvlok® 0763100104 FIG MBV-9517 Fixed Orifice Double Regulating Valve, 2 in Nominal, NPT End Style, 300 psi Pressure, Brass Body, Import
  • Actuator Type: Handwheel
  • Body Material: Brass
  • Domestic/Import: Import
  • End Style: NPT
  • Media: Water
  • Nominal Size: 2
  • Pressure Rating: 300
  • Series: FIG MBV-9517
  • Softgoods Material: PTFE
  • Trim Material: Brass Stem
  • Type: Fixed Orifice

Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 2 in Nominal, NPT End Style, 300 psi Pressure, Media: Water, Handwheel Actuator, Brass Body, Brass Stem Trim, PTFE Softgoods, Import

Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3 percentage (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F Maximum 150 psi at 260 deg F).

QTY
Add to List
  • Features
  • Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. T
  • PTFE gasket
  • Standard/Approvals: ASME B1.20.1
