Amtrol®

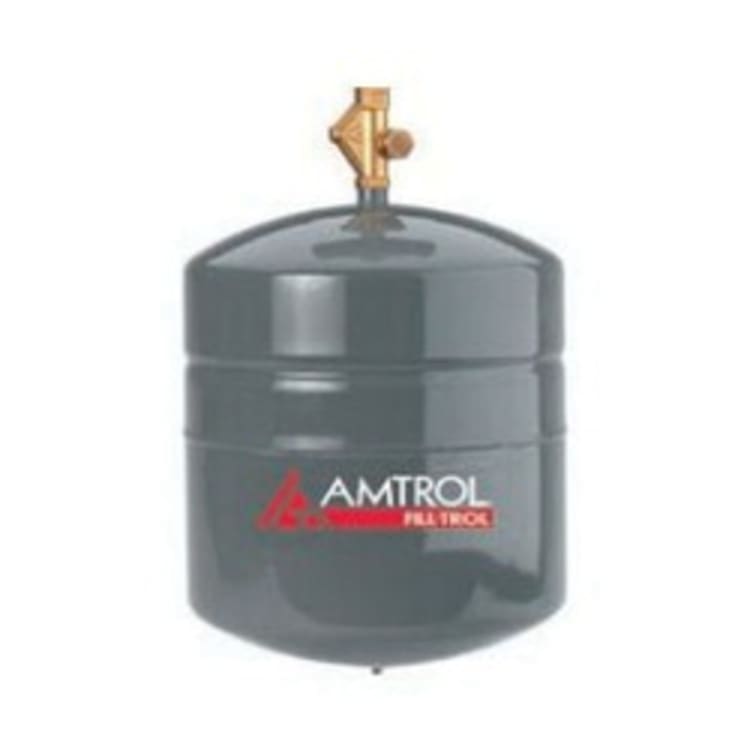

Amtrol® FILL-TROL® 109-1 FT Series Boiler System Expansion Tank, 2 gal Capacity, 0.5 Acceptance, 1 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 8 in Dia x 13 in H

13995 MFG #: 109-1
$183.00 / ea
Amtrol® FILL-TROL® 109-1 FT Series Boiler System Expansion Tank, 2 gal Capacity, 0.5 Acceptance, 1 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 8 in Dia x 13 in H
  • Acceptance Factor: 0.5
  • Capacity: 2
  • Diameter: 8
  • Diaphragm Type: Heavy Duty Butyl/EPDM
  • Domestic/Import: Domestic
  • Finish: Urethane Topcoat
  • Height: 13
  • Material: Steel
  • Pressure Rating: 100
  • Series: FT Series
  • Temperature Rating: 240

Amtrol® FILL-TROL® Boiler System Expansion Tank, Series: FT Series, 2 gal, 8 in Dia, 13 in Height, 100 psi, Acceptance Factor: 0.5, 1 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel, Urethane Topcoat, Domestic

QTY
Add to List
  • Features
  • The AMTROL FILL-TROL® system consists of a specially adapted EXTROL® pre-pressurized, diaphragm-type expansion tank and the FILL-TROL, a specially designed, automatic, fill valve
  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • Eliminates need for a separate, automatic fill valve
  • Fully adjustable
  • Helps reduce energy consumption and reduces system wear
  • Automatic air vent eliminates system air
  • Air purger separates air from water
  • System connection sets the point of no pressure change
  • Water-tight reservoir for expanded water
  • Sealed air cushion-factory precharged and 100% tested
  • 12 psig factory precharged
  • Strong, deep-drawn steel tank
  • Projection welded air stem maintains precharge setting
  • Tank pressure controls system fill
  • Spring-loaded check valve
  • Automatic shut-off valve spring
  • Removable strainer
  • Cold water supply
  • Expansion bypass
  • Fill gate stem
  • Standard/Approvals: ISO 9001-2008
  • WARRANTY: 5 Years Limited
