PHD

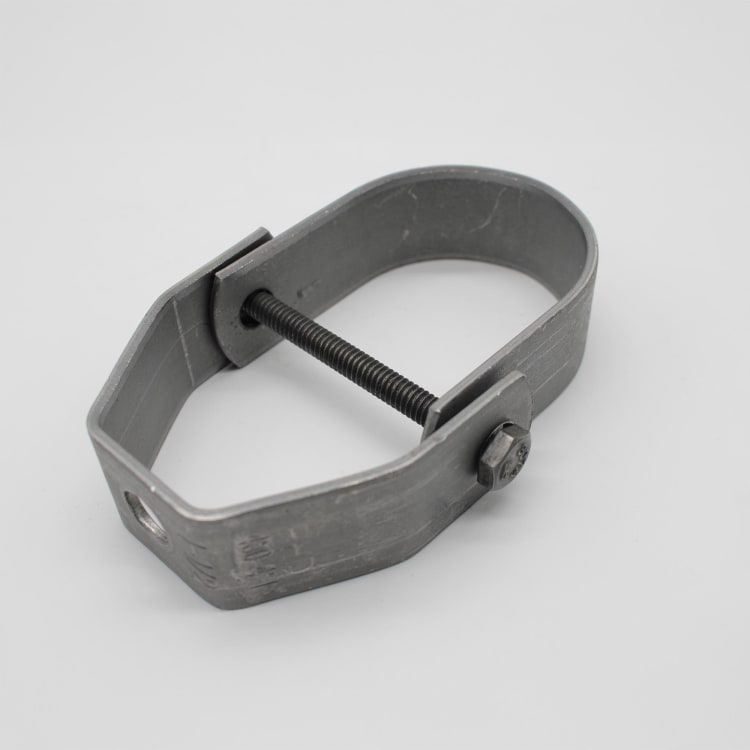

PHD 450 0150PL Standard Clevis Hanger, 1-1/2 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Plain

8190 MFG #: 450 0150PL
$17.55 / ea
PHD 450 0150PL Standard Clevis Hanger, 1-1/2 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Plain
  • Dimensions: 4-7/16 in H
  • Finish: Plain
  • Load Capacity: 730
  • Material: Carbon Steel
  • Pipe Size: 1-1/2
  • Rod Size: 3/8
  • Series: FIG 450
  • Type: Standard

PHD Clevis Hangers, Standard, FIG 450 Series, 1-1/2 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Plain, 4-7/16 in H

Designed for the suspension of non-insulated stationary pipe lines.

QTY
Add to List
  • Features
  • Underwriters' laboratories listed in the US (UL) and factory mutual approved for 2-1/2 to 8 in only
  • Use of an upper locknut ensures proper performance
  • When an over-sized clevis is used, a pipe spacer should be placed over the clevis bolt to prevent the lower U-strap from moving inward
  • 1/4 in cross bolt
  • Low carbon steel
  • Standard/Approvals: ANSI/SP 69/58 (Type 1), Federal A-A-1192A (Type 1), FM Approved, UL Listed
  • WARRANTY: 1 Year
