PHD

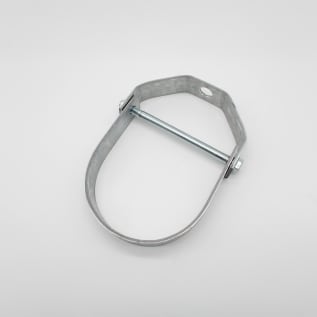

PHD 451 0400EG Standard Clevis Hanger, 4 in Pipe, 5/8 in Rod, 1430 lb Load, Carbon Steel, Electro-Galvanized

211594 MFG #: 451 0400EG
$76.05 / ea
PHD 451 0400EG Standard Clevis Hanger, 4 in Pipe, 5/8 in Rod, 1430 lb Load, Carbon Steel, Electro-Galvanized
  • Dimensions: 7-11/16 in H
  • Finish: Electro-Galvanized
  • Load Capacity: 1430
  • Material: Carbon Steel
  • Pipe Size: 4
  • Rod Size: 5/8
  • Series: FIG 451
  • Type: Standard

PHD Clevis Hanger, Standard, Series: FIG 451, 4 in Pipe, 5/8 in Rod, 1430 lb, Carbon Steel, Electro-Galvanized, 7-11/16 in H

Designed for the suspension of non-insulated stationary pipe lines.

QTY
Add to List
  • Features
  • Underwriters' laboratories listed in the US (UL) and factory mutual approved for 2-1/2 to 8 in only
  • Use of an upper locknut ensures proper performance
  • When an over-sized clevis is used, a pipe spacer should be placed over the clevis bolt to prevent the lower U-strap from moving inward
  • 3/8 in cross bolt
  • Low carbon steel
  • Standard/Approvals: ANSI/SP 69/58 (Type 1), Federal A-A-1192A (Type 1), FM Approved, UL Listed
  • WARRANTY: 1 Year
