PHD

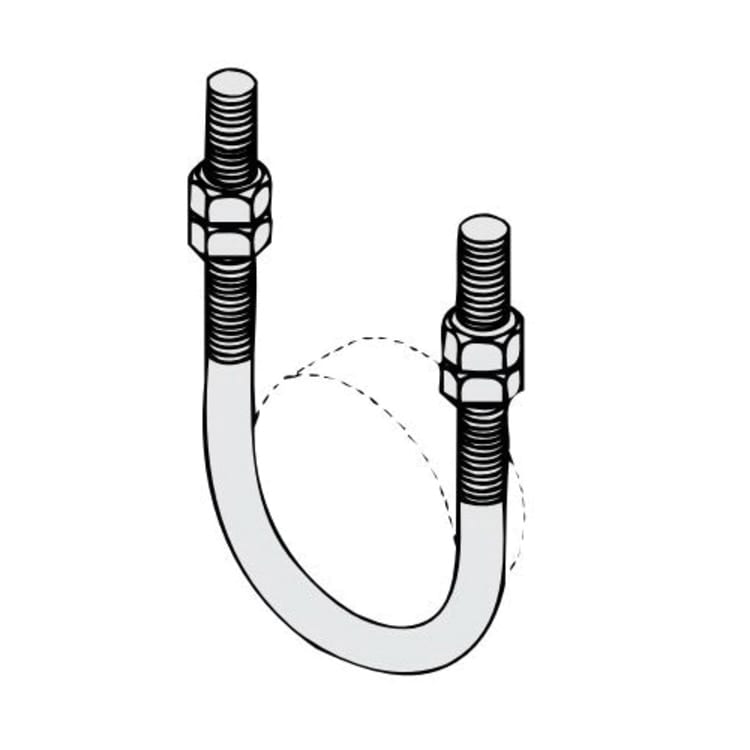

PHD 090N8350EG Standard U-Bolt, 3-1/2 in Pipe, 1/2 in Dia - Thread, Electro Galvanized, Low Carbon Steel

1344150 MFG #: 090N8350EG
$0.00 / ea
PHD 090N8350EG Standard U-Bolt, 3-1/2 in Pipe, 1/2 in Dia - Thread, Electro Galvanized, Low Carbon Steel
  • Diameter - Thread Size: 1/2
  • Finish: Electro Galvanized
  • Inside Width: 4-1/16
  • Material: Low Carbon Steel
  • Measurement System: Imperial
  • Pipe Size: 3-1/2
  • Series: FIG 91
  • Tensile Strength: 2700
  • Thread Length: 3
  • Thread Type: IPS
  • Type: Standard

PHD U-Bolt, Standard, Series: FIG 91, Measurement System: Imperial, 1/2 in Dia - Thread, 4-1/16 in Inside Width, Low Carbon Steel, 3 in Thread Length, Electro Galvanized, 3-1/2 in Pipe, IPS, 2700 lb Tensile

Designed for use as a support, anchor, or guide for various types of pipe.

QTY
Add to List
  • Features
  • Maximum recommended load 2700 lb at 650 deg F
  • Maximum recommended load 2114 lb at 750 deg F
  • Standard/Approvals: ANSI/SP 69/58 (Type 24)|Federal A-A-1192A (Type 24)
  • INCLUDES: Nut
  • WARRANTY: 1 Year
