PHD

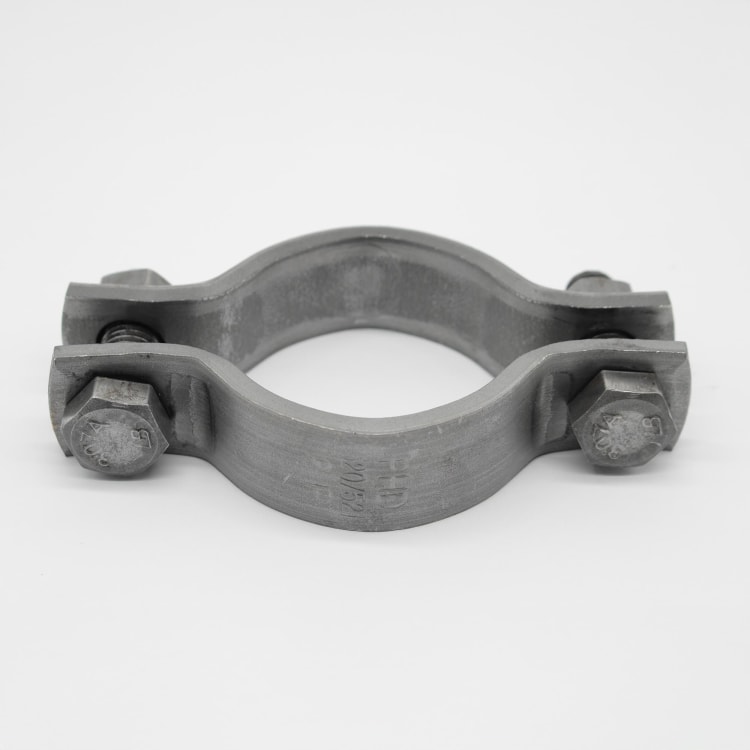

PHD 520 0200PL Standard Pipe Clamp, 2 in Pipe/Tube, 1040 lb Load, Carbon Steel, Plain, Domestic

256463 MFG #: 520 0200PL
$45.33 / ea
PHD 520 0200PL Standard Pipe Clamp, 2 in Pipe/Tube, 1040 lb Load, Carbon Steel, Plain, Domestic
  • Domestic/Import: Domestic
  • Finish: Plain
  • Load Capacity: 1040
  • Material: Carbon Steel
  • Pipe/Tube Size: 2
  • Series: FIG 520
  • Temperature Rating: 650
  • Type: Standard

PHD Pipe Clamp, Standard, Series: FIG 520, 2 in Pipe/Tube, 1040 lb, Carbon Steel, Plain, 650 deg F, Domestic

QTY
Add to List
  • Features
  • Maximum recommended load 1040 lb at 650 deg F
  • Maximum recommended load 930 lb at 750 deg F
  • Normally used in conjunction with weldless eye nut or welded eye rod to allow flexibility at the rod attachment
  • Standard/Approvals: ANSI/SP 69/58 (Type 4), Federal Specification A-A-1192A (Type 4)
