Sammys®

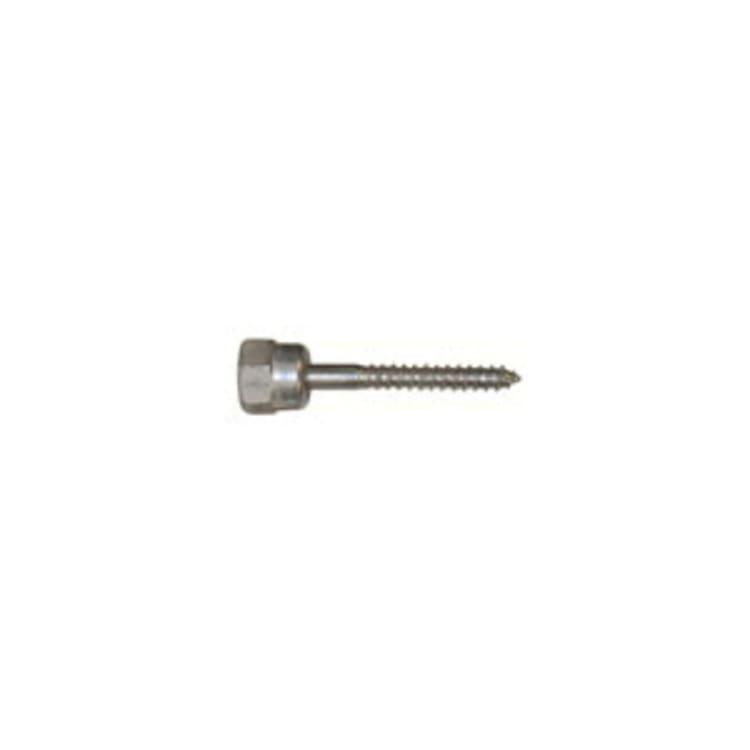

Sammys® 8007951 GST 10 Rod Anchor, 1/4 in Dia, 1 in L, 3/8-16 Rod, Vertical Mount

1050960 MFG #: 8007951
$1.82 / ea
Sammys® 8007951 GST 10 Rod Anchor, 1/4 in Dia, 1 in L, 3/8-16 Rod, Vertical Mount
  • Diameter: 1/4
  • Finish: Electro-Zinc
  • Head Size: 5/8 in AF
  • Head Type: End Drilled
  • Load Capacity: 210 lb (7/16 in OSB)/670 lb (3/4 in Ply)
  • Material: Steel
  • Maximum Work Thickness: 1-1/2
  • Mount Type: Vertical
  • Rod Size: 3/8-16
  • Series: GST 10
  • Thread Length: 1

Sammys® Rod Anchor, Series: GST 10, 1/4 in Dia, 1 in Thread Length, 3/8-16 Rod, Vertical, Steel, End-Drilled Head, 5/8 in AF Head, 1-1/2 in Maximum Work Thickness, 210 lb (7/16 in OSB)/670 lb (3/4 in Ply), Electro-Zinc

QTY
Add to List
  • Features
  • Videos
  • One step installation process: no pre-drilling required
  • Reduces installation time and cost
  • Threaded rod attachment: allows specifiers and designers to engineer systems with fewer attachment points
  • Holds from 210 to 2275 lb
  • Installs with Sammys® nut driver: ensures correct installation torque
  • Reduces occurrences of fastener failure due to over driving
  • Wood screw with bottom outlet
