Moen®

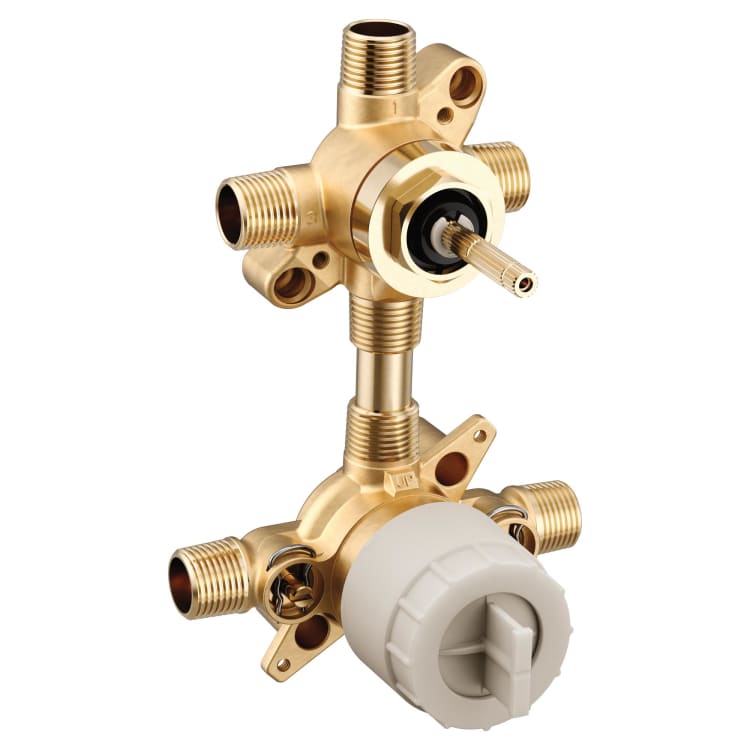

Moen® M-Pact™ M-Core™ U232CIS 3-Port 2/3 Independent Function Transfer Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body, Domestic

1531978 MFG #: U232CIS
$276.10 / ea
Moen® M-Pact™ M-Core™ U232CIS 3-Port 2/3 Independent Function Transfer Valve, 1/2 in CC/IPS Inlet x 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Brass Body, Domestic
  • Body Material: Brass
  • Domestic/Import: Domestic
  • Inlet Connection: 1/2 in CC/IPS
  • Mounting Type: Wall
  • Outlet Connection: 1/2 in CC/IPS
  • Pressure Rating: 200 psi Air/300 psi Water
  • Type: 3-Port 2/3 Independent Function

Moen® M-Pact™ M-Core™ Transfer Valve, 3-Port 2/3 Independent Function, 1/2 in CC/IPS Inlet Connection, 1/2 in CC/IPS Outlet, 200 psi Air/300 psi Water Pressure, Wall Mounting, Brass Body, Domestic

QTY
Add to List
  • Features
  • Built on the Moen® M-Pact™ common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • The valve is factory set for 2 independent showering devices but can be adjusted to accommodate 3 independent showering devices
  • IMPORTANT - When using 3 Showering Devices, transfer valve cartridge must be modified
  • Simple Cartridge Modification changes the valves flow from two outlets to three outlets
  • See Transfer Valve Instructions for additional information
  • IMPORTANT - When using 2 Showering Devices, designated outlet 3 must be CAPPED
  • M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
  • Features volume control, allowing you to adjust the flow of water for greater functionality
  • Improved style options, including the perfectly matched mixing and transfer trim, are available
  • Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
  • M-CORES adaptability allows the valves to be roughed in with the option of functionality and style changes that dont require removing or changing the valve(s)
  • Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
  • Standard/Approvals: ASME A112.18.1|CSA B125.1
  • INCLUDES: Adjustable Temperature Limit Stop and Test Plug
  • WARRANTY: Lifetime Limited Against Leaks, Drips and Finish D
