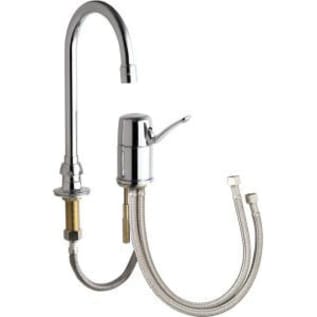

Chicago Faucet® 2302-E35ABCP Hot and Cold Water Mixing Sink Faucet, Commercial, 1.5 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, Polished Chrome, 1 Handles
- Dimensions: 10-3/4 in H
- Material: Brass
- Finish/Color: Polished Chrome
- Flow Rate: 1.5
- Maximum Deck Thickness: 1-3/8
- Spout Height: 10-3/4
- Spout Reach: 5-3/8
- Connection Type: Compression
- Connection Size: 3/8
- Commercial/Residential: Commercial
- Handle Type: Lever
- Mounting Type: Deck
- Number of Faucet Holes: 1
- Number of Handles: 1
- Spout Type: Rigid/Swivel Gooseneck
- Spray Pattern: Softflo® Aerator
- Valve/Cartridge Type: Ceramic Quarter Turn
Chicago Faucet® Hot and Cold Water Mixing Sink Faucet, 1.5 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, 5-3/8 in Spout Reach, 10-3/4 in Spout Height, Lever Handle, 1 Handles, 1 Faucet Holes, 3/8 in Connection, Compression Connection, Spray Pattern: Softflo® Aerator, 1-3/8 in Maximum Deck Thickness, Deck Mounting, Ceramic Quarter Turn, 10-3/4 in H Dimensions, Brass, Polished Chrome, Commercial Commercial/Residential
Single hole with side valve|GN2AAB: 5-1/4 in Rigid/swing gooseneck spout|E35AB: 1.5 gpm (5.7 L/min) pressure compensating Softflo aerator|2200-225: 2-3/4 in lever handle|2300-XAB: Ceramic operating cartridge|3/8 in compression flexible stainless steel supply hoses|ECAST® construction with equal to or less than 0.25% lead content by weighted average|20 to 125 psi operating|40 to 140 deg F rated operating|ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
- Features
- Single hole with side valve
- GN2AAB - 5-1/4 in rigid/swing gooseneck spout
- E35AB - 1.5 gpm (5.7 lpm) pressure compensating Softflo® aerator
- 2200-225 - 2-3/4 in lever handle
- 2300-XAB - ceramic operating cartridge
- 3/8 in compression flexible stainless steel supply hoses
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F operating
- ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
- Standard/Approvals: ADA Compliant|ANSI/ICC A117.1|ASME A112.18.1/CSA B125.1|BAA Compliant|California Green Building|California Health and Safety Code 116875 (AB 1953-2006)|Louisiana Low Lead Law HB.471|NSF/ANSI 372 Low Lead Content|NSF/ANSI 61 Section 9 by CSA|Vermont Bill S.152
- WARRANTY: Lifetime Limited Faucet, 5 Year Limited Cartridge,
