Brizo®

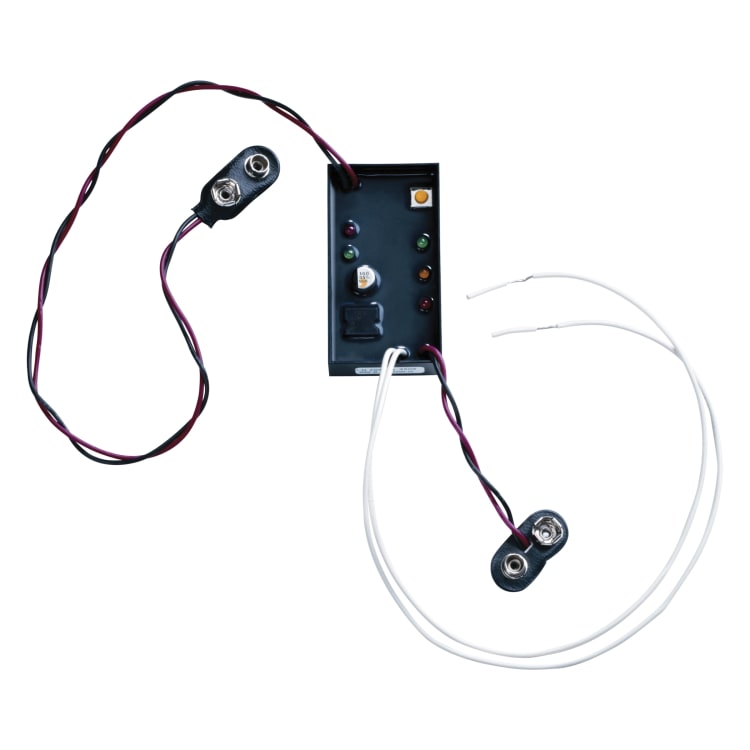

Brizo® 061047A Hardwire Converter With Battery Backup, For Use With HDF® 590, 591 and 592 Series Battery Electronic Faucet, 24 VAC/6 VDC, Domestic, Commercial

1060891 MFG #: 061047A
$71.25 / ea
Brizo® 061047A Hardwire Converter With Battery Backup, For Use With HDF® 590, 591 and 592 Series Battery Electronic Faucet, 24 VAC/6 VDC, Domestic, Commercial
  • Commercial/Residential: Commercial
  • Domestic/Import: Domestic
  • Specifications: 24 VAC/6 VDC
  • Suitable For Use With: HDF® 590, 591 and 592 Series Battery Electronic Faucet

Brizo® Hardwire Converter, For Use With: HDF® 590, 591 and 592 Series Battery Electronic Faucet, 24 VAC/6 VDC, Domestic, Commercial

QTY
Add to List
  • Features
  • Converts Delta commercial 590, 591 and 592 Series battery electronic faucets to hardwire with battery backup
  • 24 VAC at 60 Hz input voltage
  • 6.4 VDC +/- 5 % output voltage
  • 150 mA maximum output current
  • -55 to 85 deg C operating temperature range
  • Physical connections: No 22 AWG stripped primary connection/9 VDC snap secondary connection
  • 22 AWG wire
  • 12 in L wire
  • Wire ends: Strip length of wires should be 0.375 in typical
  • Standard/Approvals: California Provision: WARNING: This product contains one or more chemicals including lead known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after installing or handling the product.
