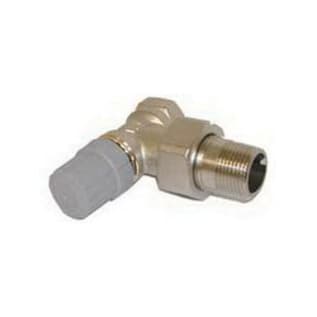

Danfoss 013G8031 RA 2000 Angle Thermostatic Radiator Valve, 1-1/4 in Nominal, MNPT x FNPT End Style, 145 psi (Static)/232 psi (Test) Pressure, Brass Body
Danfoss Thermostatic Radiator Valve, Angle, Series: RA 2000, 1-1/4 in Nominal, MNPT x FNPT End Style, 145 psi (Static)/232 psi (Test) Pressure, 250 deg F, Brass Body, EPDM Disc, Seat Washer O-Ring Softgoods, Nickel Plated
- Valve bodies are designed to meet the demands of the residential, commercial and industrial sectors
- 140 deg F max sensor temperature
- 15 psi maximum differential pressure (water)
- 45 to 86 deg F adjustable temperature range
- RA 2000 valves are fitted with a packing gland assembly that is replaceable while the system is in operation
- Sturdy EPDM rubber valve disc provides a seal against the valve seat at differential pressures of up to 15 PSI in hot water heating systems, while 15 psig for low pressure steam systems
- Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation
- If manual operation is required, a separate version of manual knob is available
- Valves remain normally open with no operator mounted
- 2.8 CV
- FPT x MPT union tailpiece connection
- Standard/Approvals: Conforms to ASHRAE/ANSI Standard 102-1983
Danfoss Thermostatic Radiator Valve, Angle, Series: RA 2000, 1-1/4 in Nominal, MNPT x FNPT End Style, 145 psi (Static)/232 psi (Test) Pressure, 250 deg F, Brass Body, EPDM Disc, Seat Washer O-Ring Softgoods, Nickel Plated
RA 2000 Thermostatic Radiator Valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two-pipe steam systems. Operators and valves are packaged separately to allow an installer to select a suitable combination for each application.
- Brand:Â DanfossBody Material:Â BrassEnd Style:Â MNPT x FNPTFinish:Â Nickel PlatedNominal Size:Â 1-1/4Pressure Rating:Â 145 psi (Static)/232 psi (Test)Series:Â RA 2000Softgoods Material:Â EPDM Disc, Seat Washer O-RingTemperature Rating:Â 250Type:Â Angle
