PHD

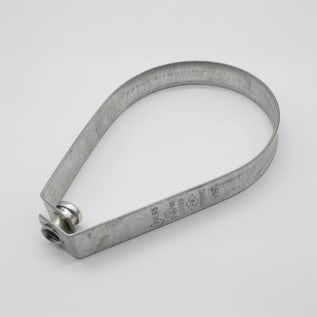

PHD 141 0350EG NFPA Swivel Ring Hanger, 3-1/2 in Pipe, 525 lb, 3/8 in Rod, Carbon Steel, Electro-Galvanized, Domestic

161547 MFG #: 141 0350EG
$16.12 / ea
PHD 141 0350EG NFPA Swivel Ring Hanger, 3-1/2 in Pipe, 525 lb, 3/8 in Rod, Carbon Steel, Electro-Galvanized, Domestic
  • Domestic/Import: Domestic
  • Finish: Electro-Galvanized
  • Length: 6-5/8
  • Load Capacity: 525
  • Material: Carbon Steel
  • Pipe Size: 3-1/2
  • Rod Size: 3/8
  • Series: FIG 141

PHD NFPA Swivel Ring Hanger, FIG 141 Series, 3-1/2 in Pipe, 525 lb, 6-5/8 in Length, 3/8 in Rod, Carbon Steel, Electro-Galvanized, Domestic

Designed for the suspension of non-insulated stationary pipe lines. The knurled insert nut that allows a vertical adjustment after installation, is tapped to NFPA reduced rod size standards. Captured knurled insert nut present on pipe sizes 1/2 in (15 mm) to 2 in(50 mm). The capture is permanent in the bottom portion of the band, allowing the hanger to be opened during installation if desired, but preventing the knurled insert nut from falling completely out.

QTY
Add to List
  • Features
  • Underwriters' laboratories listed in the US (UL), Canada (CUL), for use with standard steel pipe sizes 3/4 in (20 mm) to 8 in (200 mm) and CPVC pipe sizes 3/4 in (20 mm) to 4 in (100 mm)
  • Factory mutual approved for sizes 3/4 in (20 mm) to 8 in (200 mm)
  • Low carbon steel
  • Standard/Approvals: ANSI/SP 69/58 (Type 10), cULus Listed, Federal A-A-1192A (Type 10), FM Approved
