Sharkbite®

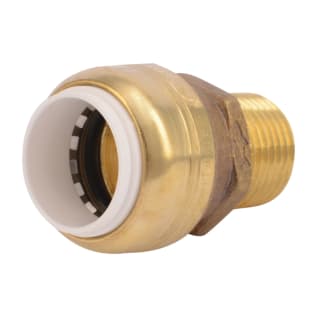

Sharkbite® UIP120 Male Adapter, 1/2 in Nominal, PVC x MNPT End Style, Brass, Import

1544007 MFG #: UIP120
$20.00 / ea
Sharkbite® UIP120 Male Adapter, 1/2 in Nominal, PVC x MNPT End Style, Brass, Import
  • Dimensions: 1.85 in L
  • Domestic/Import: Import
  • End Style: PVC x MNPT
  • Fitting/Connector Type: Adapter
  • Material: Brass
  • Nominal Size: 1/2
  • Pressure Rating: 200
  • Temperature Rating: 200

Sharkbite® Male Adapter, Adapter Fitting/Connector, 1/2 in Nominal, PVC x MNPT End Style, 200 psi Pressure, 200 deg F, Brass, 1.85 in L Dimensions, Import

The SharkBite® PVC x MNPT Adapter allows you to make a joint to Schedule 40, 80 or 120 PVC pipe using a push-fit connection and gives you a Male NPT Adapter on the opposite end.

QTY
Add to List
  • Features
  • Instant push-fit connection for increased ease-of-use: no soldering, clamps or unions required
  • Fitting certified to 200 psi and 200 deg F (93 deg c): Proven durability and quality
  • Tan collar fits copper tubing and CTS CPVC and PEX - Connect all three type in any combination
  • White collar fits schedule 40, 80 and 120 PVC pipe and also fits schedule 40 and 80 CVPC not for use on galvanized iron pipe
  • Integral tube liner for PEX Installations - Integrated design means no loose components, ensures secure, reliable connection
  • Design certified and agency listed inspector friendly, peace of mind
  • Easy to disconnect and reusable remove pipe
  • Design certified to NSF/ANSI 61 and NSF/ASNI 14 product standard for use in potable water and hydronic heating water distribution: quality engineered and manufactured
  • Approved to be used underground and behind walls without access panels designed for hydronic heating as well as potable water distribution
  • No primer or glue required, no waiting for glue to dry means quicker installation time for PVC pipe
  • DZR lead free brass body, EPDM O-ring, stainless steel grab ring, veradel tube support liner
  • Standard/Approvals: ASTM F876/F877|ASSE 1061/NSF 61|AWWA C904|cUPC Listed|CSA B137.5|IAPMO Listed|IPC Listed|NSF/ANSI 372
  • WARRANTY: 2 years Limited
