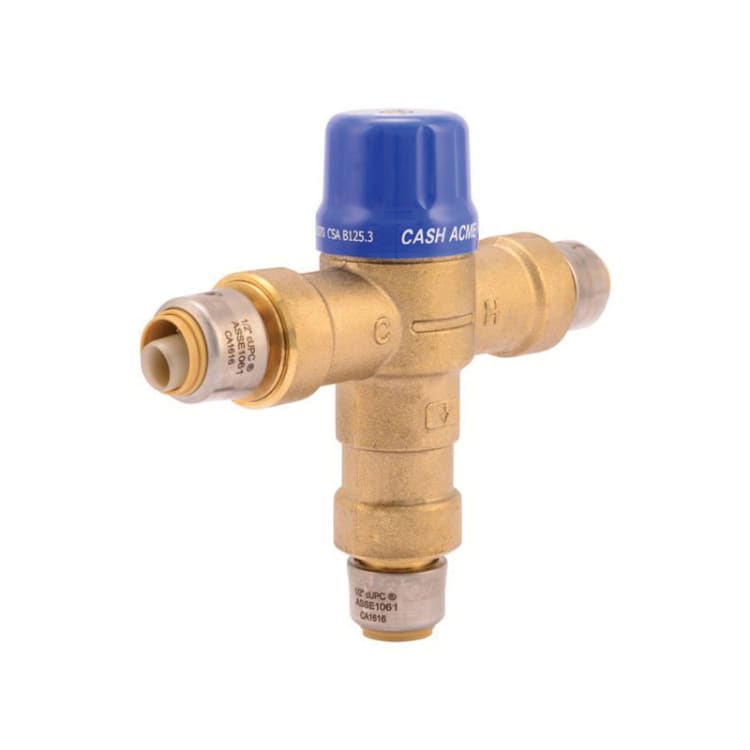

Sharkbite® Heatguard® 24548 HG110-D Thermostatic Mixing Valve, 1/2 in Inlet x 1/2 in Outlet, 230 psi, 1 to 20 gpm, Bronze Body, Domestic
Sharkbite® Heatguard® Thermostatic Mixing Valve, Series: HG110-D, 1/2 in Inlet Connection, 1/2 in Outlet, 230 psi, 85 to 130 deg F, 1 to 20 gpm, Bronze Body, 5.94 in L x 5.36 in H, Domestic
Documents
- Domestic and commercial hot water distribution
- To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control)
- Certified for distribution and point-of-use applications: Safer hot water from all outlets
- Allows the water heater to be set at 140 deg F (60 deg C) or higher, greater effective hot water volume yields less chance of Legionella within the cylinder
- Every valve is tested for performance prior to shipping, specify and install with confidence
- Robust, low complexity construction, superior reliability, improved user safety
- Adjustable and lockable mechanism, minimizes unauthorized tampering with valve setting Factory set, locked to max 120 deg F
- 120 to 180 deg F hot/39 to 80 deg F cold temperature supply range
- Brass internal cap, stainless steel spring
- Lead free
- Standard/Approvals: ASSE 1017|1069 and 1070|CSA B125.3|IAPMO Listed|ANSI/NSF 372|ANSI/NSF 61
- WARRANTY: 5 Years Limited
Sharkbite® Heatguard® Thermostatic Mixing Valve, Series: HG110-D, 1/2 in Inlet Connection, 1/2 in Outlet, 230 psi, 85 to 130 deg F, 1 to 20 gpm, Bronze Body, 5.94 in L x 5.36 in H, Domestic
The HG110 D with SharkBite® Connections is a triple-listed thermostatic mixing valve that delivers water at a safe 120 deg F (49 deg C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F (60 deg C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. The SharkBite® connections means that installing the valve Each valve is factory set and locked to a maximum 120 deg F (49 deg C). Adj. outlet temperature range: 85 to 130 deg F (29 to 54 deg C).
- Brand: Sharkbite®Body Material: BronzeDimensions: 5.94 in L x 5.36 in HDomestic/Import: DomesticFlow Rate: 1 to 20Inlet Connection: 1/2Outlet Connection: 1/2Pressure Rating: 230Series: HG110-DTemperature Rating: 85 to 130
