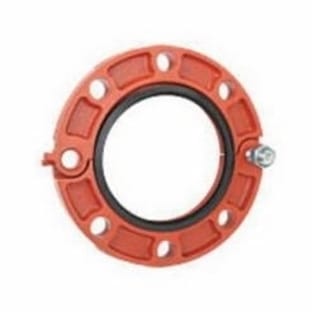

Grinnell® 71H20S Hinged Flange Adapter With Grade "EN" EPDM Gasket, 2 in, 4 5/8 x 3 in Bolt

1235370 MFG #: 71H20S
$316.00 / ea
Grinnell® 71H20S Hinged Flange Adapter With Grade "EN" EPDM Gasket, 2 in, 4 5/8 x 3 in Bolt
  • Color: Orange
  • End Style: Flanged x Grooved
  • Finish: Painted
  • Material: Ductile Iron
  • Nominal Size: 2
  • Pressure Rating: 500
  • Series: 71H
  • Temperature Rating: -30 to 230
  • Thickness: 0.87
  • Type: Hinged
  • Pressure Class: 125/150

Grinnell® Flange Adapter, Hinged, Series: 71H, 2 in Nominal Size, Grooved, 4 Bolts, 5/8 x 3 in Bolt, 0.87 in Thickness, 500 psi, Ductile Iron, Painted, Orange, 6 in W

Hinged Flange Adapter allows a direct transition from flanged components to GRINNELL grooved components. The two segments design comes with a pre-pressed ring at one of the mating ends which facilitates a hinged action. This allows for an easy and quick installation. The specially designed gasket enables the transition from a grooved system to a flanged system with a single flange adapter. The flange bolt patterns conform to ANSI Class 125 and 150.

QTY
Add to List
  • Features
  • Standard/Approvals: UL/ULC, cUL Listed, IAPMO, UPC, Certified, FM Approved, NSF/ANSI 61
  • WARRANTY: 10 Years Limited
