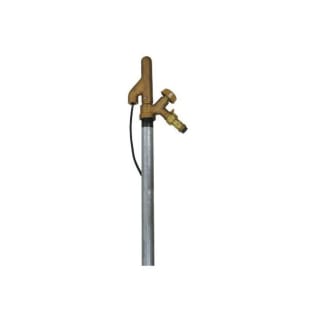

Woodford® H34 Freezeless Sanitary Heated Yard Hydrant, 1 in, MNPT, Wheel Handle Shut-Off, Domestic
- Domestic/Import: Domestic
- End Style: MNPT
- Handle Material: Polycarbonate
- Head Material: Brass
- Nominal Size: 1
- Pressure Rating: 125
- Series: Model H34
- Shut-Off Type: Wheel Handle
- Temperature Rating: 120
- Type: Freezeless
Woodford® Sanitary Heated Yard Hydrant, Freezeless, Series: Model H34, 1 in Nominal, MNPT, Wheel Handle Shut-Off, 125 psi, Brass Head, Polycarbonate Handle, 120 deg F, Domestic
The Model H34 is a sanitary, frost proof yard hydrant. When the hydrant is shut off, all water is contained in the hydrant and piping system, instead of draining into the sub-soil. The thermostatically controlled heating element keeps the water in the hydrant from freezing even at temperatures down to 20 deg below zero. An ASSE 1052 approved Model 50HF Backflow Preventer protects the hose connection from backflow contamination in freezing and non-freezing conditions. The H34 is easy to install, since its connection to the piping system only extends one foot below finished grade. All preventative maintenance procedures and repairs can be completed from the top of unit, without removing hydrant from the source piping.
- Features
- Heater element: Thermostatically controlled 65 W, 120 VAC, 60 cycle, low watt density heating element
- Brass head and heater cap
- 1 in galvanized steel pipe casing
- 3/4 in male hose thread outlet nozzle
- 1/2 in FNPT conduit fitting
- Polycarbonate wheel handle
- Patent pending model 50HF backflow preventer
- Field testable
- Two independent check valves
- Drains automatically when hose is removed
- No spray back
- Standard/Approvals: ASSE 1052|IAPMO Listed
- INCLUDES: 3 ft Electrical Cord
