Tomahawk

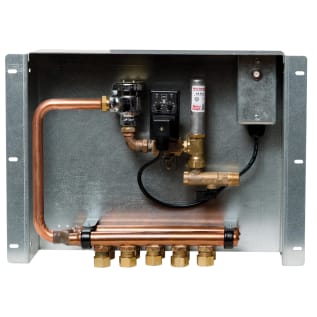

Tomahawk 695-ER10 10-Port Electronic Trap Primer With Double Manifold, Female C x Compression Connection, Steel, Domestic

1389744 MFG #: 695-ER10
$1,486.01 / ea
Tomahawk 695-ER10 10-Port Electronic Trap Primer With Double Manifold, Female C x Compression Connection, Steel, Domestic
  • Connection: Female C x Compression
  • Domestic/Import: Domestic
  • Finish: Galvanized
  • Material: Steel
  • Series: 695
  • Type: 10-Port

Tomahawk Electronic Trap Primer, 10-Port, Series: 695, Female C x Compression, Steel, Galvanized, Domestic

Sioux Chief ETP&rade; electronic trap primers shall be used where replenishmentof floor drain traps is required. Trap primer shall be listed and certified to ASSE1044 and equipped with solenoid actuating device, vacuum breaker, distributionmanifold, and proper electrical hardware. Water release is factory-set for dailyrelease of 2 ounces. Frequency and duration of activation shall be adjustable.Trap primer shall be equipped with an ASSE 1010 arrester to protect the solenoiddevice. Trap primer shall be mounted in steel access boxes.

QTY
Add to List
  • Features
  • Videos
  • Service multiple traps with a single primer
  • Perfect for utility room installation and easy access to supply lines
  • Complete with Mini-Rester™, shutoff, vacuum breaker and solenoid
  • Made in the USA
  • Stainless steel, EPDM O-Ring, plastic piston, dow 111 lubricant arrester
  • Type L copper distribution manifold
  • Brass outlet
  • Plastic housing, brass components solenoid
  • Brass vacuum breaker
  • 9.2 W at 60 hz, 120VAC, 300 ft maximum electrical supply, 18 ga minimum wire, 3 A circuit breaker
  • 14 in H x 14 in W x 3 in D recessed box cabinet unit
  • Recessed box
  • Standard/Approvals: ASSE 1010/1044
